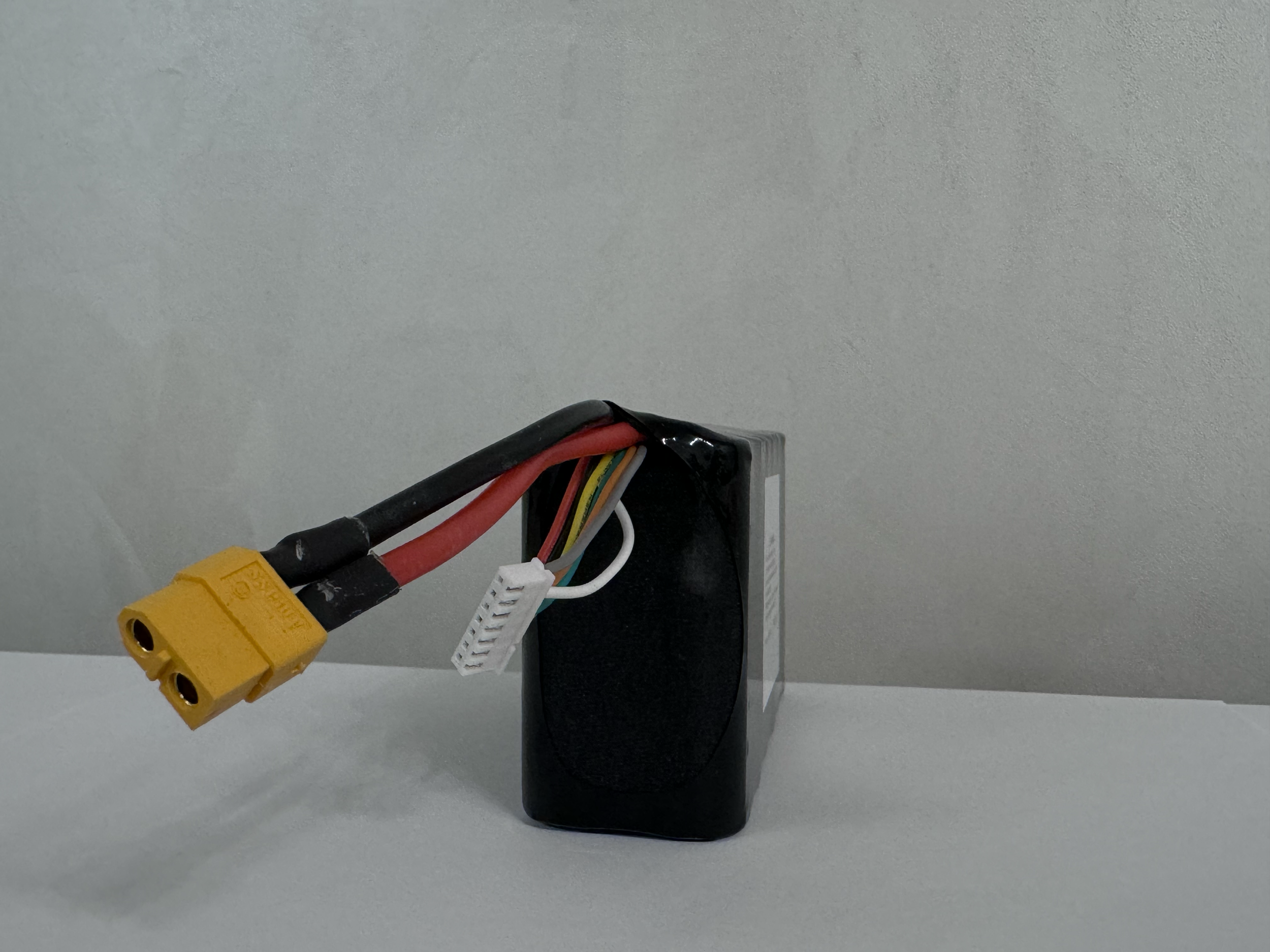

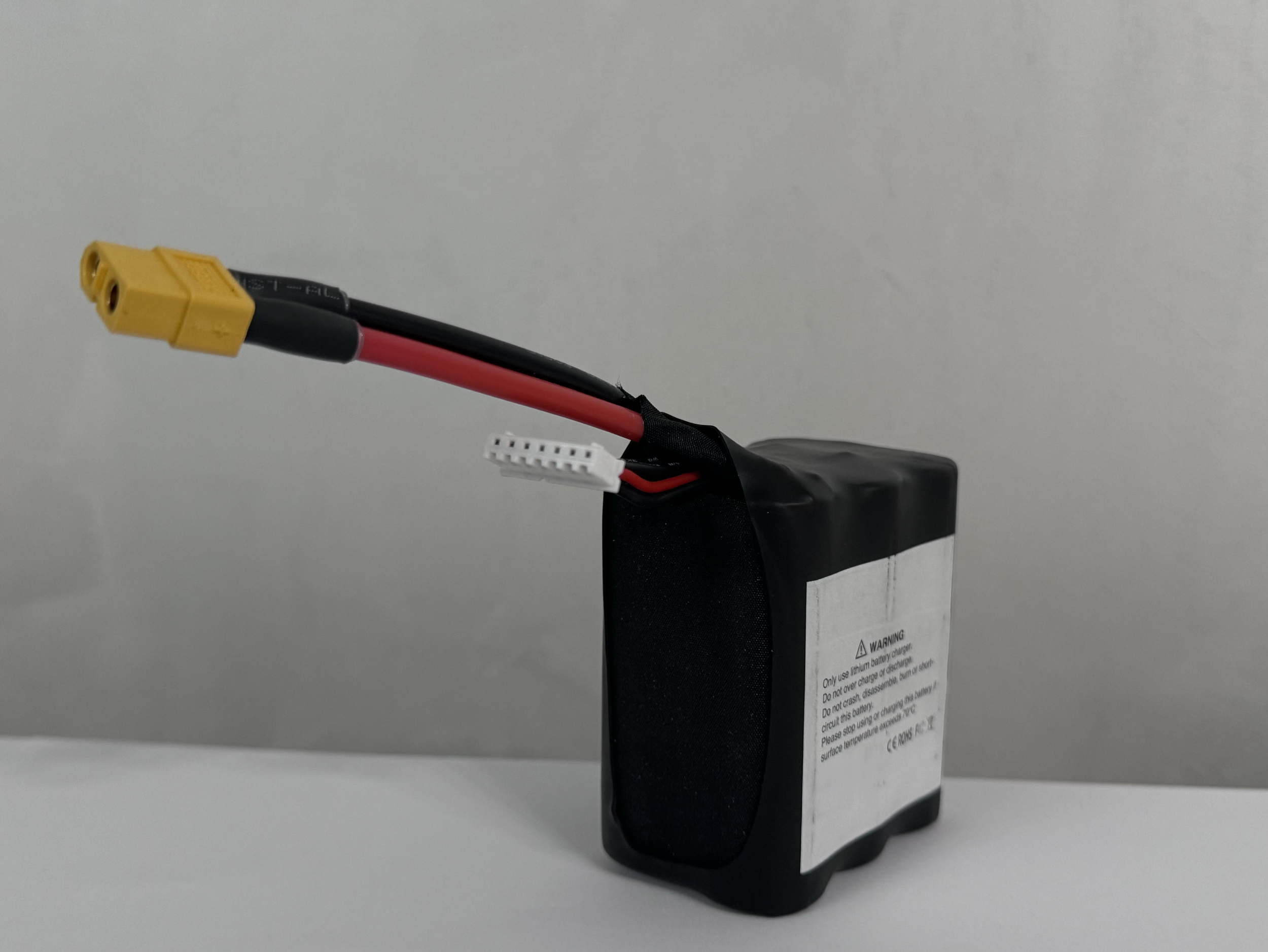

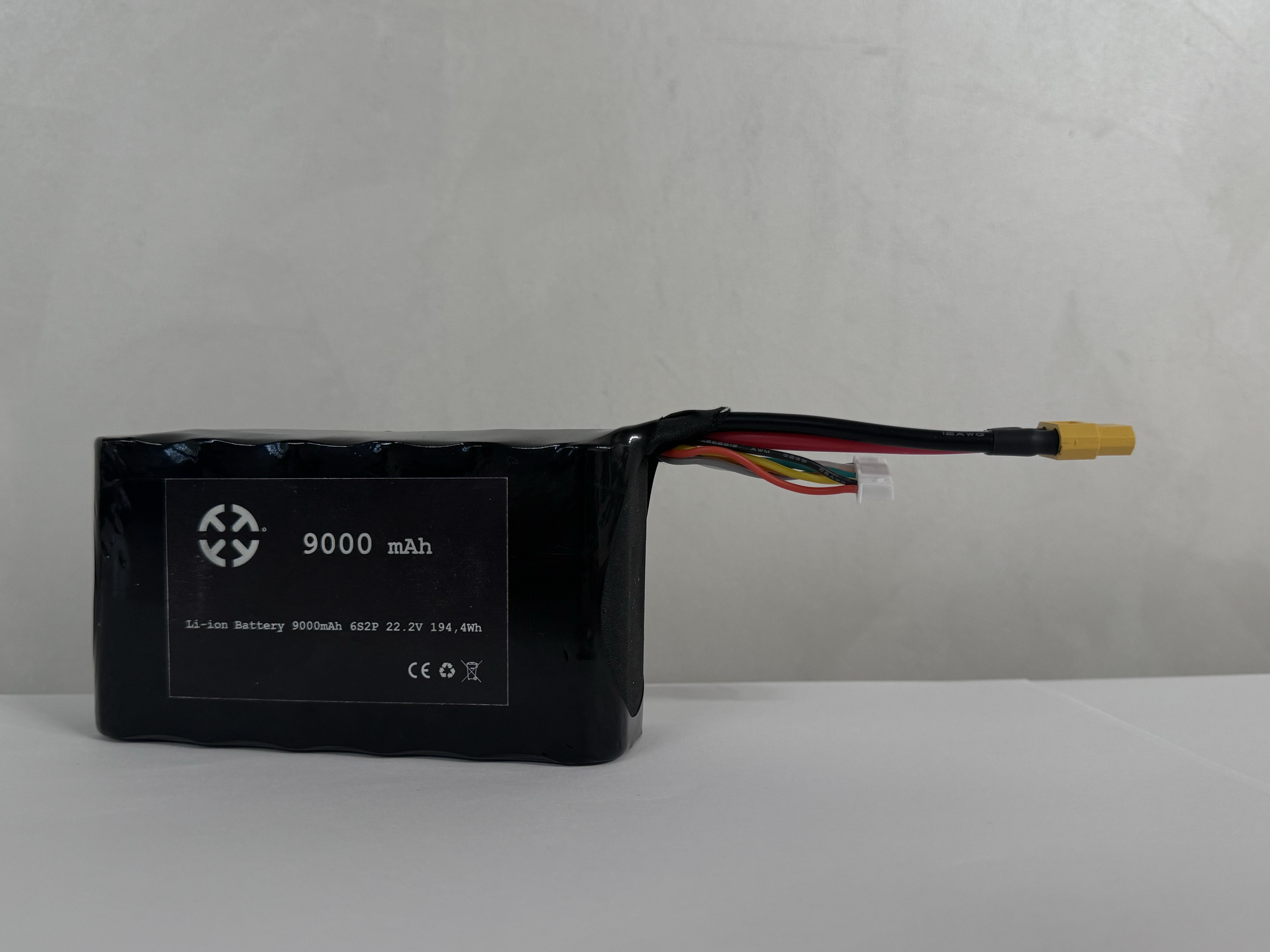

The Li-ion 9,000 mAh battery is built with a 6S2P configuration, providing 194.4 Wh of power. It operates at a nominal voltage of 22.2 V, with a maximum of 25.2 V and a minimum of 16.8 V. The discharge current reaches 90 A, while the charge current is 4.5 A (1C). It is equipped with an XT60 female power connector and a JST XH 1.25 (7-pin female) balancing connector. The battery functions in a temperature range from -20 °C to +60 °C, weighs 880 g, and has dimensions of 44 × 74 × 130 mm.

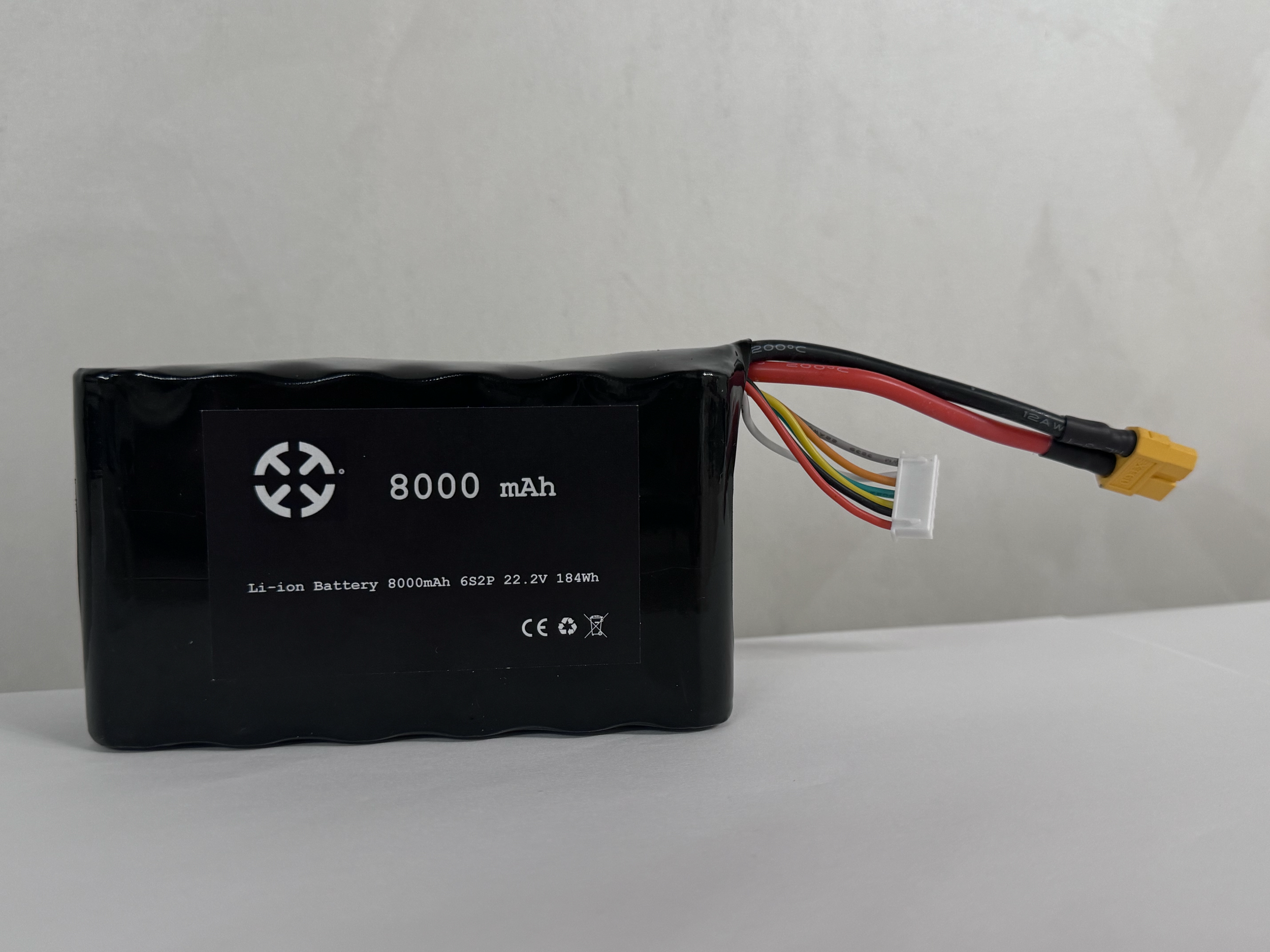

The Li-ion 8,000 mAh battery also uses a 6S2P configuration, delivering 184 Wh of power. It has the same maximum and nominal voltages as the 9,000 mAh model, but with a minimum voltage of 15.6 V. The discharge current is 60 A, and the charge current reaches 8 A (2C). It comes with identical XT60 and JST XH connectors, operates in the same temperature range, weighs 870 g, and shares the same dimensions.

The Li-ion 12,000 mAh battery is configured as 6S3P, with a total energy of 264 Wh. It maintains the same voltage parameters as the smaller models, with a discharge current of 60 A and a charge current of 8 A (2C). This battery weighs 1,255 g, measures 65 × 78 × 128 mm, and is fitted with XT60 and JST XH connectors.

The Li-ion 16,000 mAh battery is built with a 6S4P configuration, offering 368 Wh of energy. It provides a discharge current of up to 240 A and a charge current of 16 A (4C). With voltage levels identical to the other models, this battery weighs 1,350 g and has dimensions of 90 × 77 × 130 mm. It is also equipped with XT60 and JST XH connectors.

All models are finished in black, feature reliable Li-Ion INR technology, and are designed to operate in temperatures ranging from -20 °C to +60 °C, ensuring durability and efficiency in various conditions.
