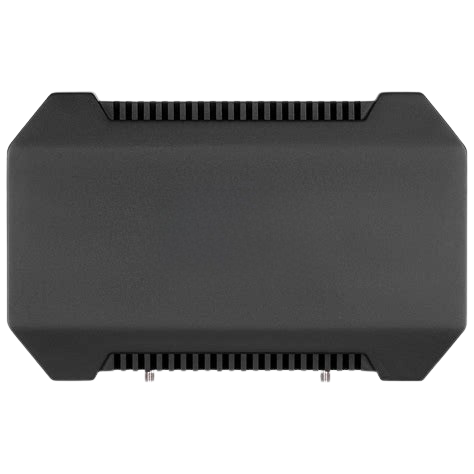

The three-band active directional antenna provides signal amplification between the remote control and the drone. Low-noise, high-quality amplifiers ensure 10 W of power, extended flight range, and stable signal. The battery capacity is 8,000 mAh, and a USB Type-C port is provided for fast charging.
Features:
Operating range: 2.4G–2.5G / 5.15–5.85 GHz
Output power: 10 W × 2 / 40 dBm
Frequency range: 2400–2500 MHz, 5150–5850 MHz
Maximum output power: 40 dBm (10 W) / 40 dBm (10 W)
Antenna gain: 15 dB ± 1 / 18 dB ± 1
Battery capacity: 8,000 mAh
Receiving gain: 16 dB ± 1 / 16 dB ± 1
Transmission gain: 18 dB ± 1 / 18 dB ± 1
LED indicator: 4 Blue LEDs
Charging port: Type-C
Cable connector type: N-type
Dimensions: 230 × 146 × 39 mm
Housing material: aluminum
The three-band active directional antenna is the pinnacle of performance in signal amplification between the remote control and the drone.
Enhanced and Stable Performance
Impressive specifications, including extended flight range and exceptional signal stability, are ensured by low-noise, high-quality amplifiers delivering 10 W of power.
This is the first active antenna designed for the latest DJI models operating on three frequency bands. Its operating range is 2.4G–2.5G / 5.15–5.85 GHz, with an output power rating of 10 W × 2 / 40 dBm.
The antenna supports the use of extension cables up to 25 meters long without loss of amplification efficiency (when using high-quality coaxial cables with minimal attenuation per meter).
Efficient and Long-Lasting Operation
The 8,000 mAh battery provides extended autonomous operation, while the high-speed USB Type-C port enables fast charging.
Powerful Compatibility
The model is compatible with controllers modified for Alientech, Avengers, ForHawks, Alisa, and others (when using 2E cables and adapters).
Reliable Protection
A durable protective case ensures secure transportation and storage.
