The Professional FPV Ground Station is a high-performance solution engineered for long-range UAV operations, ensuring stable control and video transmission at distances of 15 to 20 km. Equipped with advanced directional antennas, it provides a reliable communication link between the operator and the drone even in challenging RF environments. With a plug-and-play architecture, the station connects to a remote controller and FPV goggles via reinforced cabling for rapid field deployment.
Built for maximum operational flexibility, the system features a 14-meter telescopic mast and 50-meter extension cables on a reel, allowing for optimal antenna elevation and flexible operator positioning. The station operates across a multi-band spectrum, supporting video receiver frequencies (1.2-1.3 GHz / 3.3 GHz / 4.9-6.2 GHz) and control frequencies (360-560 MHz / 750-1020 MHz / 2100-2680 MHz). Offering a 60° horizontal and 20° vertical coverage angle, it delivers precise signal tracking and stable communication performance.

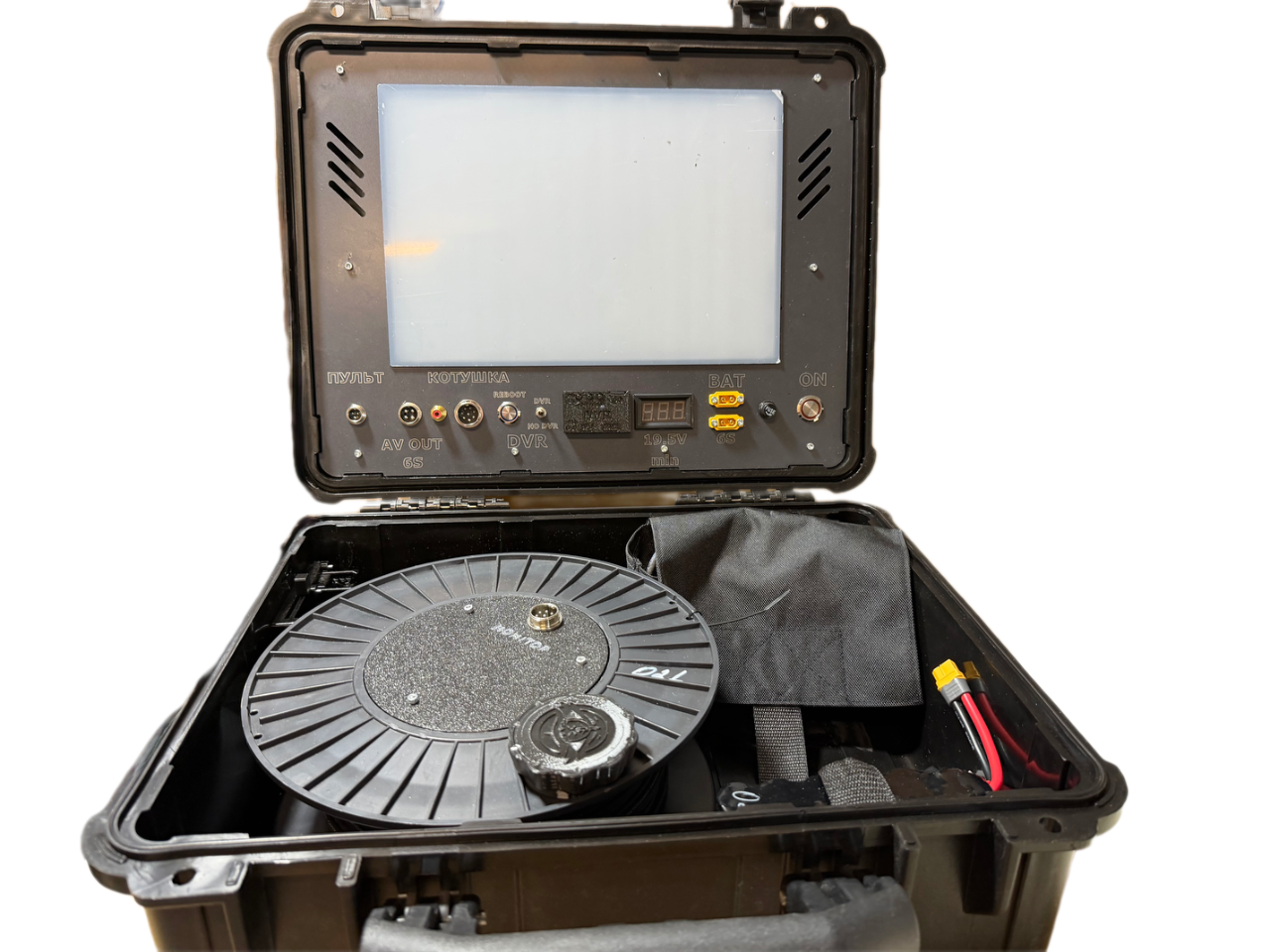

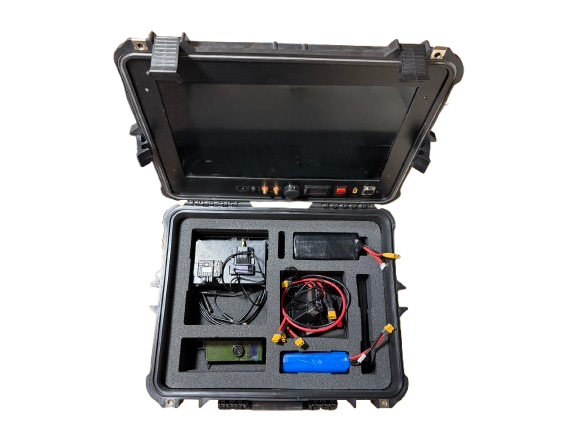

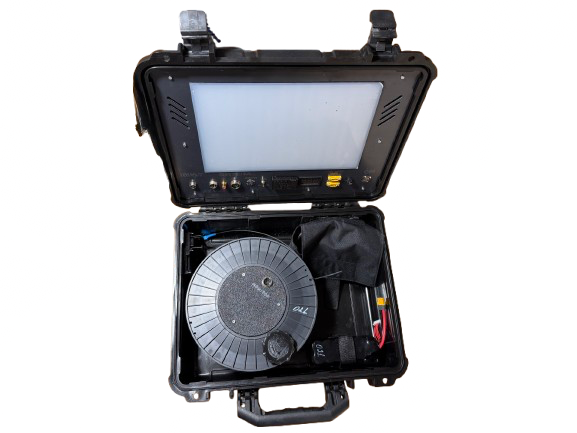

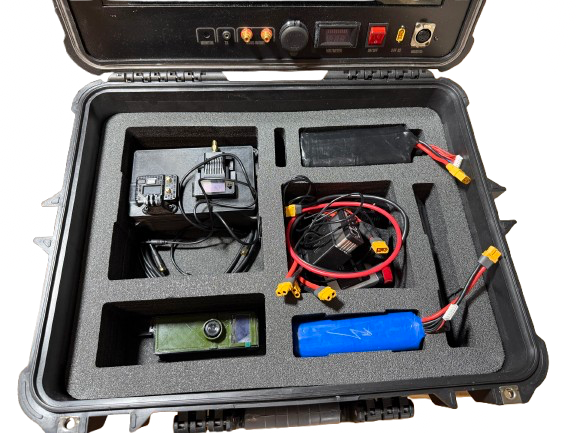

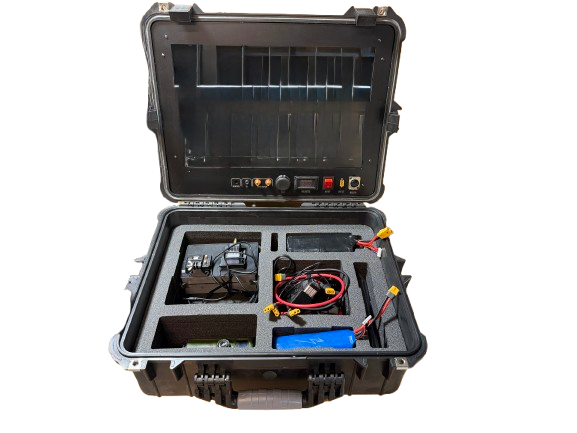

This comprehensive ground station system is housed in a rugged, waterproof, and shock-resistant transport case, making it suitable for demanding field conditions and outdoor UAV operations. The standard kit includes an analog display unit, a dual-channel battery charger with power supply, an integrated DVR recording system, and a remote antenna module with a precision pan-and-tilt mechanism. Every essential component is included for immediate deployment, with FPV goggles available as an optional configuration depending on user requirements.
